doorLink Woodland Creek Wood Overlay



2″ thick insulated steel sandwich panel constructed of top quality materials. A highly detailed grooved panel, deep pebble-grain texture, and two coat prefinished paint system all combine to enhance the beauty of your home.



Standard Features





AVAILABLE IN SIX DESIGNS
With a complete line of window design options and may be custom ordered from any architectural drawing.

24 GAUGE METAL
Hot dipped galvanized steel construction with hemmed inside return rail and ribbed panel to provide superior strength and durability.









WOOD OVERLAY
Attached chemically to the surface creating a lasting superior bond.

17 GAUGE HOT DIPPED GALVANIZED STILES
Heavy-duty metal stiles give strong rigid support for all hinges, rollers and operator attachment.

STILES ATTACHED WITH RIVETS
Provides superior strength when compared to common sheet metal joining methods.

TONGUE AND GROOVE MEETING RAILS
For superior strength and better sealing against wind, rain, and snow.

RIGID ALUMINUM RETAINER
Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.

R VALUE 6.85 INSULATION
Enhances energy savings, makes your door operation quieter and reduces exterior noise.

CFC FREE EXPANDED POLYSTYRENE
Environmentally friendly insulation that will not degrade with vibration or time.

HIGH IMPACT PLASTIC BACK COVER
Protects the insulation and allows for easy cleaning.

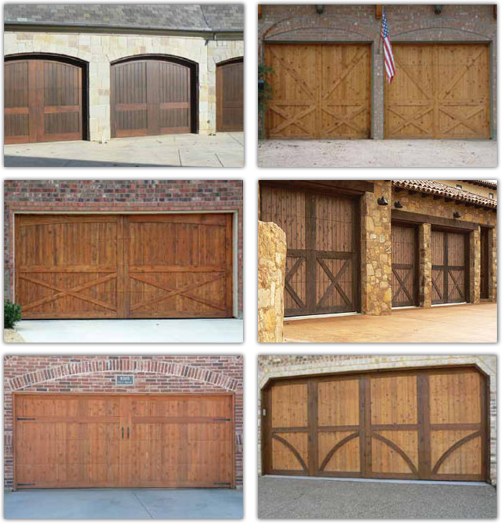

Wood Door Collection

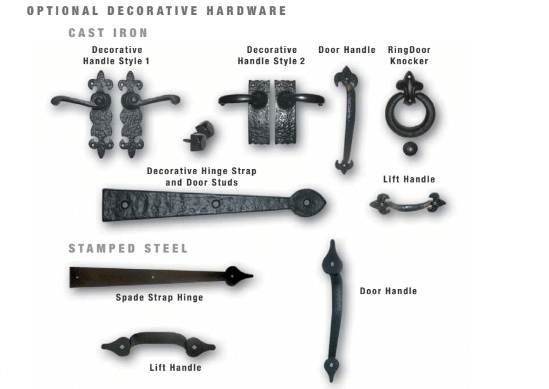

Optional Decorative Hardware





*Not all glazing options may be available from all distributors.
*No glazing on 18″ sections.







Construction
